MK Ecocut 130CS

Flatbed Die Cutting Machine

Request a Quote

Watch Video

MK Ecocut 130CS flatbed die cutters with stripping function are used for medium-format corrugated cardboard converting. They can process corrugated sheets of up to 1300 × 960 mm and 1–5 mm thick, cutting box blanks while the stripping section removes waste after cutting. Ecocut 130CS die cutting machines require less floor space than larger-format die cutters and use less energy during operation, so they fit better into plants that need medium-format corrugated die cutting and stripping in a smaller working area.

• Medium-Format Corrugated Processing
  Ecocut 130CS flatbed die cutters process corrugated sheets up to 1300 × 960 mm, covering common medium-format box blanks and packaging layouts.
• Accurate Cutting and Waste Removal
  Sheets move steadily into the die-cutting section, while the die-cutting plate and stripping section stay aligned for cleaner cutting and waste removal.
• Faster Job Changeover
  Quick-change chase design reduces the time needed for tool changes, especially when switching between different corrugated box orders.
• Stable Production Speed
  Ecocut 130CS flatbed die cutters can run at up to 6000 sheets/hour, so corrugated sheets can pass through die cutting and stripping at a steady pace.
• Better Stack Handling
  After die cutting, leftover edges are removed before collection, while batch alignment keeps the finished blanks neatly arranged for easier stacking and handling.
• Flexible Die-Cutting Setup
  Ecocut 130CS can be combined with a fore-and-backhand die cutting setup to support a more connected corrugated board converting workflow.
• Compact Layout and Lower Energy Use
  Ecocut 130CS uses less floor space and consumes less energy than larger-format die cutters. It is better suited to plants that need medium-format corrugated die cutting and stripping in a smaller working area.

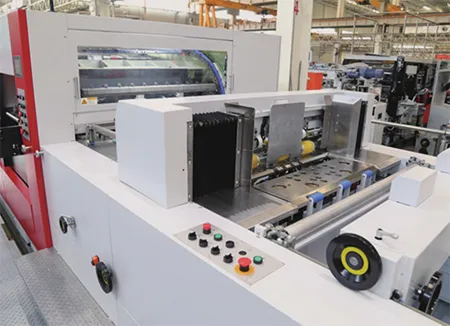

Feeding Unit

• The lower suction feeding mechanism uses MK Masterwork patented technology to reduce scratches on the sheet surface during feeding. It also improves the transport of warped corrugated sheets.
• A high-torque servo motor drives sheet feeding and controls the sheet speed before it reaches the front lay, so the board enters the positioning area flatter and more steadily.
• Front lay sensors and double-sheet detection check the feeding process before the board enters the die-cutting section.
• The side holder in the feeding section is adjusted by motor, which helps operators set the sheet position according to the board size.
• The pneumatic side aligning device keeps the board aligned from the side, and the front holder height can be adjusted electrically.
• Side positioning push lays are installed on both sides to improve side positioning accuracy before die cutting.

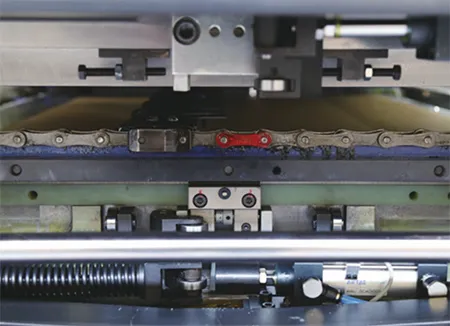

Die-Cutting Unit

• Die-cutting pressure can be adjusted up to 200 t according to the board thickness and cutting requirements.
• Empty-run and sheet-drop detection check whether sheets are fed correctly before each cutting cycle.
• Center positioning on the die-cutting plate helps operators align the plate more accurately during setup.
• Pneumatic locking secures the die-cutting tools and shortens the time needed for plate handling.
• An air cushion helps operators move the cutting plate more easily during setup and adjustment.
• The adjustable cutting plate gives operators more control when setting the cutting position.

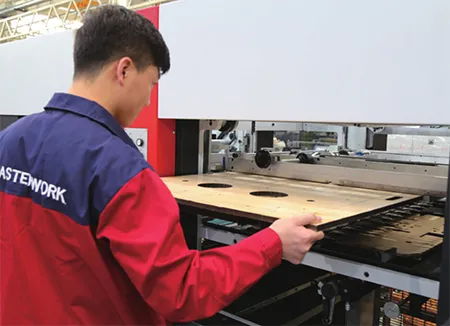

Stripping Unit

• The upper stripping frame lifts pneumatically, so operators can access the stripping tools more easily during setup.
• Center positioning on the stripping frame keeps the stripping tools aligned and reduces repeated adjustment during plate changes.

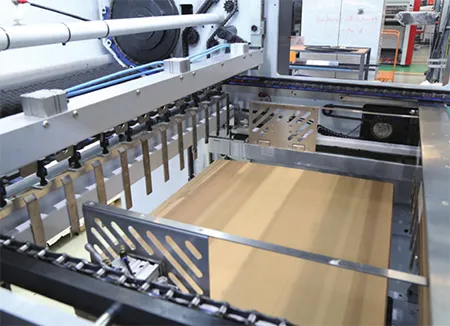

Delivery Unit

• Gripper edge removal and test sheet removal are included as standard, so operators can remove leftover edges and check samples during production.
• The pile aligning device keeps finished blanks arranged more neatly at the delivery end.
• The auxiliary delivery device uses both pneumatic and motorized control for non-stop delivery during sheet collection.
• Two delivery options are available: high-pile delivery and conveyor delivery. High-pile delivery is the standard configuration, and the finished stack can be pulled out together with the pallet after delivery.

Lubrication System

• The automatic lubrication system supplies oil to the main moving parts of the die cutter, reducing routine maintenance work and wear during long-term operation.

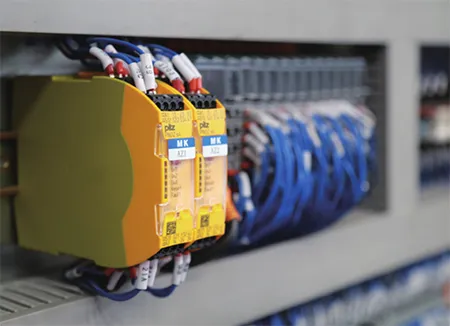

Control and Safety Protection

• Imported pressure sensors monitor plate deformation during operation. If the pressure exceeds the set limit, the die cutter triggers an alarm and stops automatically to protect the die-cutting section.
• Modular electrical components make maintenance easier because key control parts can be checked and replaced more conveniently.
• The electronic control system follows national safety standards and keeps each section working in the correct sequence during operation.
