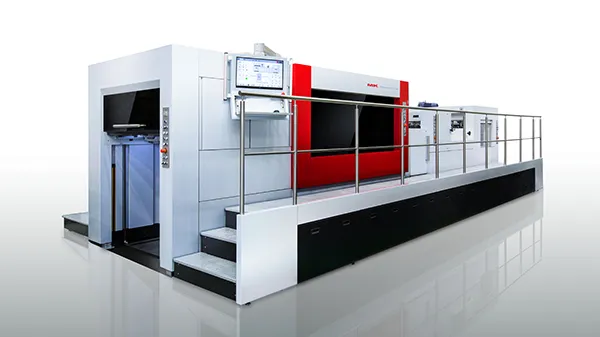

Digimatrix 106LR
Automatic Laser Cutting Machine
Request a Quote
Watch Video
Digimatrix 106LR is used for laser cutting of paperboard products in folio and smaller formats, including packaging boxes, gift boxes, labels, greeting cards, and other customized printed products. The system combines digital creasing and laser cutting processes to support short-run production, customized packaging applications, and digital post-press workflows.
Technical Parameters
| Design Type | Sheet-Fed / Flying Mode |
| Sheet Size | Max. 1060 × 760 mm; Min. 400 × 350 mm |
| Application Materials | Cardboard, Cut-Ready Sheet |
| Light Source | CO₂ |
| Laser Energy | 500 W / 1000 W × 3 |
| Positioning Method | Video Capture |
| Input File | PLT, DXF |
| Power Supply | AC380V + N + PE, 50 Hz, 30 kW |
| Working Environment | T25±2°C, RH40%–60% |
| Net Weight | 5000 kg |
| Machine Dimensions | 9500 × 5100 × 2254 mm |
Features

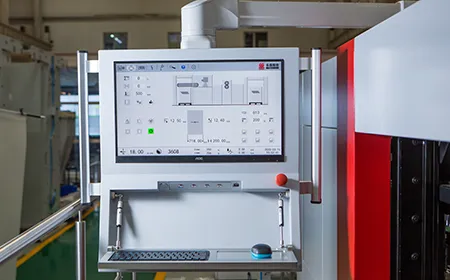

System Configuration
- Computer display screen supports machine operation and production monitoring.
- Intuitive control panel helps simplify operation and parameter adjustment.
- Machine configuration follows CE standards.

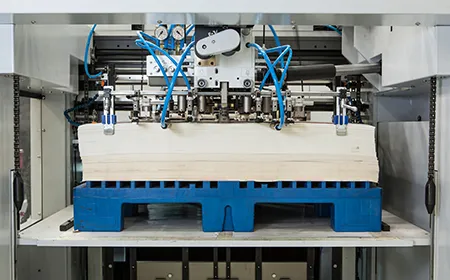

Non-stop Feeder
- Strong suction feeder head supports stable sheet feeding.
- Quick positioning and fine adjustment functions help simplify feeder setup.
- Stack pile and side blower systems can be adjusted electrically from both sides.

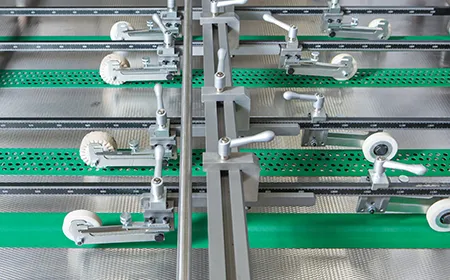

Feed Table
- Push-pull side lay system supports flexible sheet positioning.
- Vacuum feed table helps maintain stable sheet transport.
- Ultrasonic double-sheet detection monitors sheet feeding conditions.
- Multi-dimensional front lay adjustment system improves positioning accuracy.
- Front lays and side lays both use photoelectric paper detection systems.

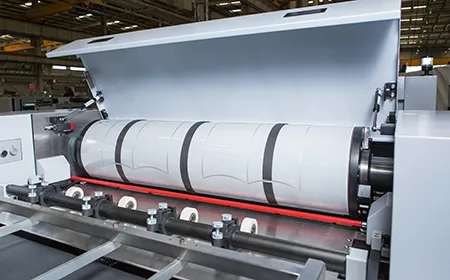

Creasing Unit
- Round pressing process supports creasing operation before laser cutting.
- Upper and lower creasing plates can be exchanged according to production requirements.
- Supports 3D digital offline creasing board production.

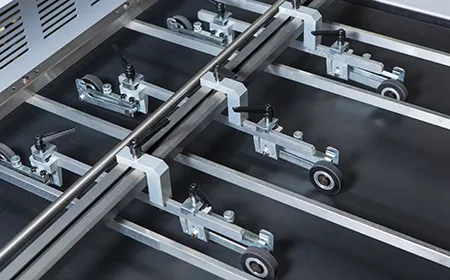

Transition Speed Shift Structure
- Servo motor control system provides stable dynamic response during operation.
- Real-time speed matching improves sheet transport consistency between sections.
- Two-way pneumatic locking device supports stable transition control.

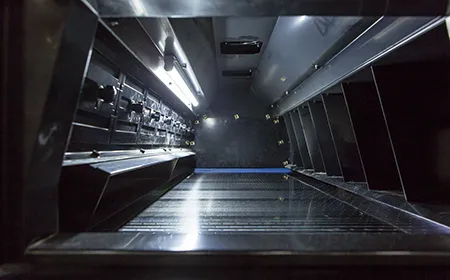

Laser Cutting Unit
- Movable video positioning system improves cutting alignment accuracy.
- Three-laser parallel control structure allows multiple laser cutting operations simultaneously.
- Forward and reverse video positioning mechanism supports more flexible positioning control.
- Exhaust system helps maintain cleaner working conditions during cutting.
- Automatic steel belt cleaning system reduces manual cleaning work.

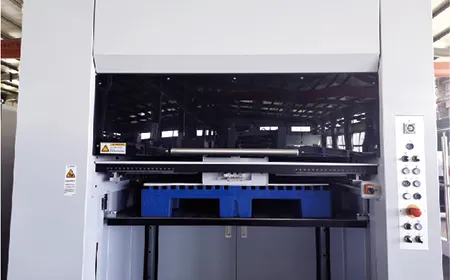

Delivery Unit
- Pneumatic paper aligning device
- Pneumatic sample take-out mechanism
- Upper suction belt delivery system supports stable sheet transport.
- Paper size adjustment device includes digital display for easier setup.
- Movable paper delivery suction device
