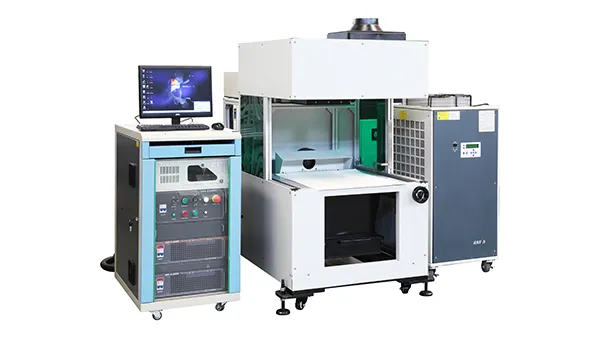

LC480T
Laser Cutter Engraver
LC480T is a laser cutting and engraving machine used for paper and PET product processing. It is suitable for applications such as greeting cards, New Year paintings, wedding invitations, invitation cards, paper-cutting products, cake rims, decorative plates, and paper handicrafts. The system can be connected with digital printing equipment to support a more integrated digital production workflow for short-run and customized printed products.
| Design Type | Platform Height Adjustable, Manual Sheet-Fed |
| Platform Area | 700 × 700 mm |
| Max. Cutting Area | 480 × 480 mm |
| Platform Adjustable Height | 250–520 mm |
| Light Source | CO₂ |
| Laser Energy | 180 W |
| Power Supply | AC220V, 50 Hz, 5–7 kW |
| Working Environment | T25±2°C, RH40%–60% |
| Net Weight | 400 kg |
| Machine Dimensions | 2000 × 1800 × 1600 mm |
-
Digital Production Workflow
Cutting files can be changed directly through computer control, enabling the laser cutter to process personalized products, short-run digital prints, and post-press work for large-format imposed jobs.
-
High Cutting Precision
Automatic laser cutting and engraving help maintain stable cutting accuracy without vibration deviation during processing.
-
Efficient Production Process
Laser cutting helps reduce the time required for producing and adjusting traditional mechanical cutting dies, supporting faster job preparation and production switching.
-
Lower Operating Cost
The cutting process is controlled directly by computer software, so traditional cutting dies are not required for different graphics and character patterns. This helps reduce tooling, operation, and maintenance costs for customized production work.
